Stretcher Trolleys

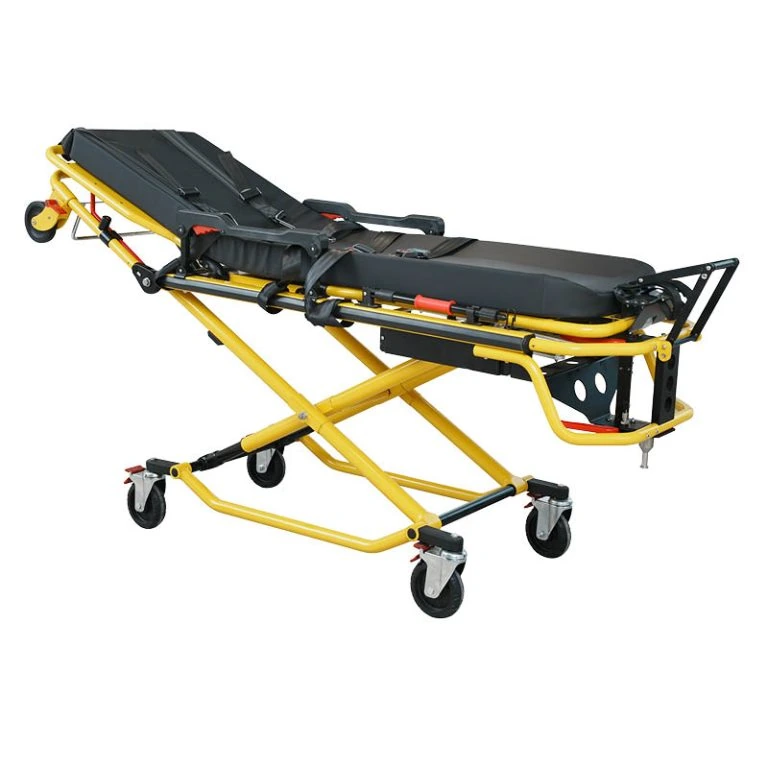

Stretcher Trolley 03
Stretcher Trolley 03. Unfolded dimensions (L × W × H): 2000 × 560 × 1170 mm (±10 mm).
Public product ID: NUP-MED-000411
Specifications
- Unfolded Dimensions(L x W x H): 2000 × 560 × 1170 mm ( ± 10 mm)
- Folded dimensions(L x W x H): 2000 × 560 × 380 mm ( ± 10 mm)
- Length adjustment: 1450-2000 mm
- Height adjustment: 510 mm, 600 mm, 680 mm, 770 mm, 840 mm, 900 mm, 940 mm, 990 mm
- Bed height: 58 cm ± 5
- Height adjustment range: 51 cm, 60 cm, 68 cm, 77 cm, 84 cm, 90 cm, 94 cm, 99 cm
- Backrest angle: 0-75°( ± 5°)
- Leg angle: 0-20°( ± 5°)
- Configuration: X-type outriggers
- Load capacity: ≤ 220 kg
- Configuration: Requires 2 operators
- Main materials: Aluminum alloy
- Casters: 6-inch wheels x 4 with brakes
- Straps: One chest plate with metal buckles; one leg strap
- Mattress(thickened sponge with waterproof PVC, thickness 100 mm): 1 pc
- Telescopic salt water shelf(2-section, with a maximum adjustable length of 71 cm): 1 unit
- Stretcher Fixing Lock: 1 set
- Oxygen cylinder bracket: 1 pc
