Stretchers & Transport Equipment

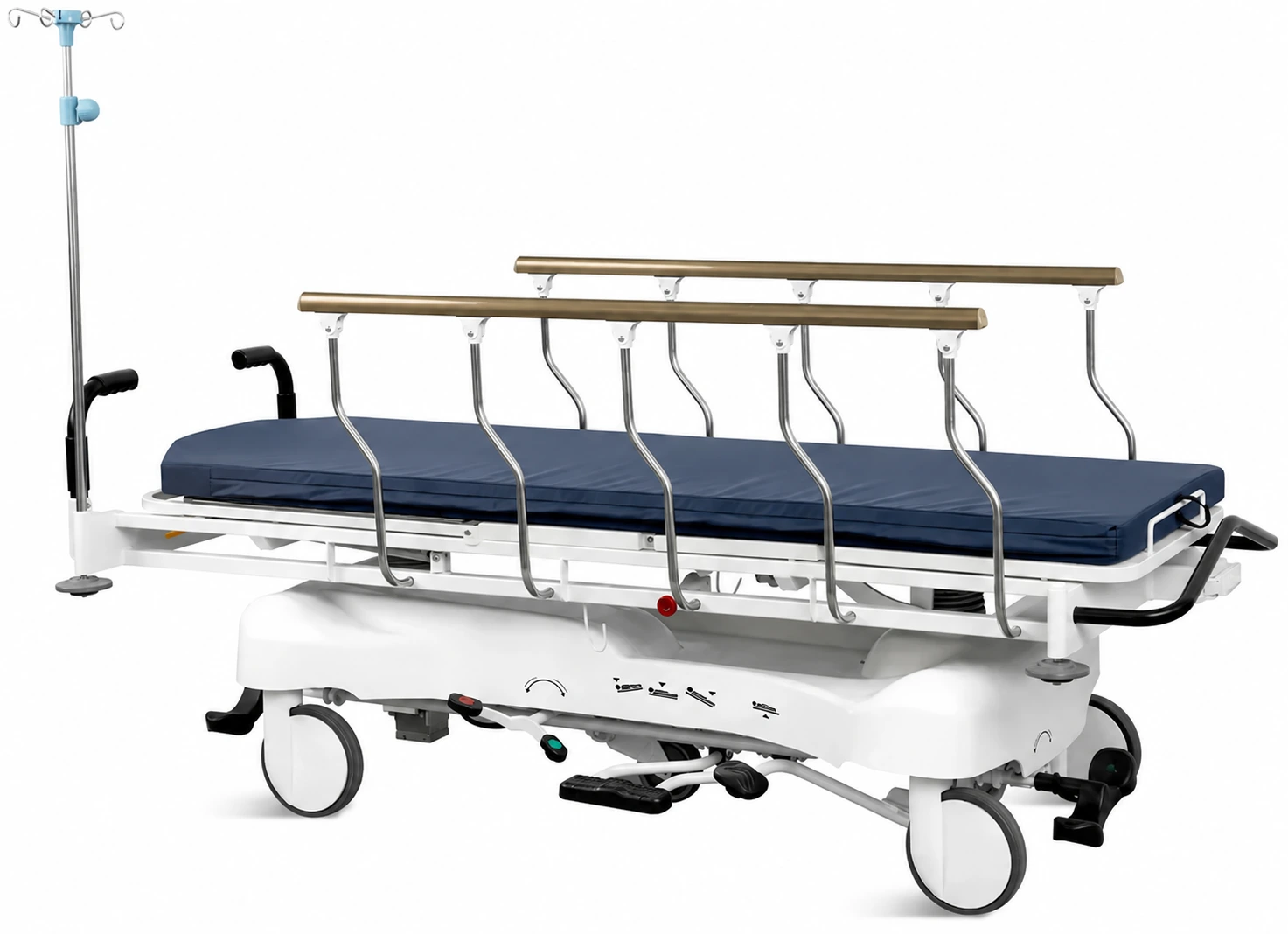

Patient Transportation Trolley 07
Patient Transportation Trolley 07. Dimensions: Length 2120 x Width 840 x Height 590-900 mm ± 10 mm (This height refers to the distance from the ground to the bed surface).
Public product ID: NUP-MED-000410
Specifications
- Dimensions: Length 2120 x Width 840 x Height 590-900 mm ± 10 mm (This height refers to the distance from the ground to the bed surface)
- Bed Boards: The back bed board is made of HPL material, which can be used for half-body X-ray imaging and is equipped with a back X-ray clamp; other bed boards are made of plastic-steel material
- Back Lifting Range: 0-85° ± 5°
- Leg Lifting Range: 0-30° ± 5°
- Reverse Trendelenburg: 0-15° ± 2°
- Trendelenburg: 0-15° ± 2°
- 8-inch(200 mm) Central Control Casters: 4 pcs
- Hydraulic Pumps: 2 pcs
- 5-speed Foldable Guardrails: 1 pair
- Stainless Steel Infusion Pole: 1 pc
- Infusion Stand Holes: 4 pcs
- Back Lifting Gas Springs: 2 pcs
- Leg Lifting Crank Handle: 1 pc
- Anti-collision Wheels: 4 pcs
- Foot Pedals on Both Sides of the Bed Frame: Used to control lifting, forward tilt and backward tilt
- Central Control Brakes: Located at the front and rear of the bed frame
- Fifth Caster: Used to control directional movement
- Bottom Plastic Cover: 1 pc
- Mattress: 1 pc, 10 cm thick, made of PU fabric
- Static Load Capacity: 250 kg
- Dynamic Load Capacity: 135 kg
- With patient straps: 2 pcs
- Configuration: With Oxygen Bottle Holder
- Configuration: With strap at base of the storage area
