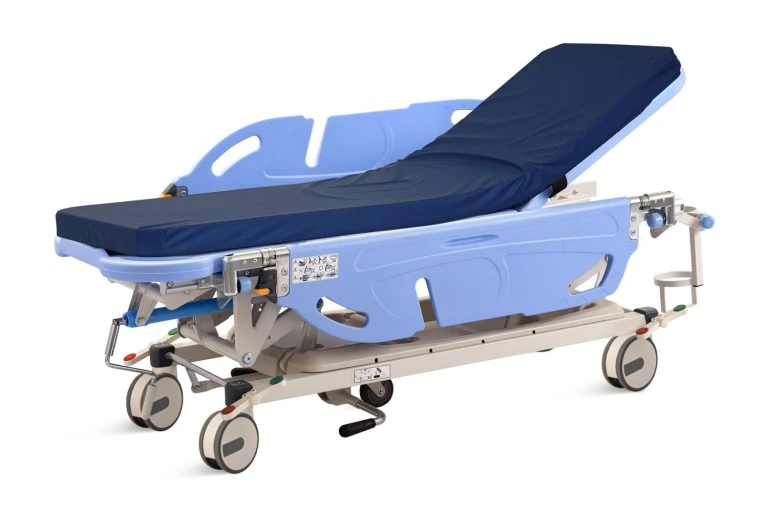

Patient Transportation Trolley 04

Specifications

• Extemal size(LxW): 1930 × 663 mm( ± 10 mm)
• Tableheight adjustment: 510-850 mm( ± 10 mm)
• Backpate adjustment: 0-70°( ± 5°)
• Static load: 170 kg
• Back Rest Air Spring: 1 pc
• Lifting Screw Rod: 1 pc
• PP Material Bed boards: 2 pcs
• PP Material Guardrails With Angle Indicator: 2 pcs
• IV Pole Previsions: 4 pcs
• IV Pole: 1 pc
• Fifth Wheel Device For Direction Control: 1 set
• 6-inch Central Control Wheels: 4 pcs
• Central Locking Break Pedal: 4 pcs
• Bottom Plastic Cover: 1 pc
• Oxygen Cylinder Holder: 1 pc
• 6 cm PU Mattress: 1 pc
