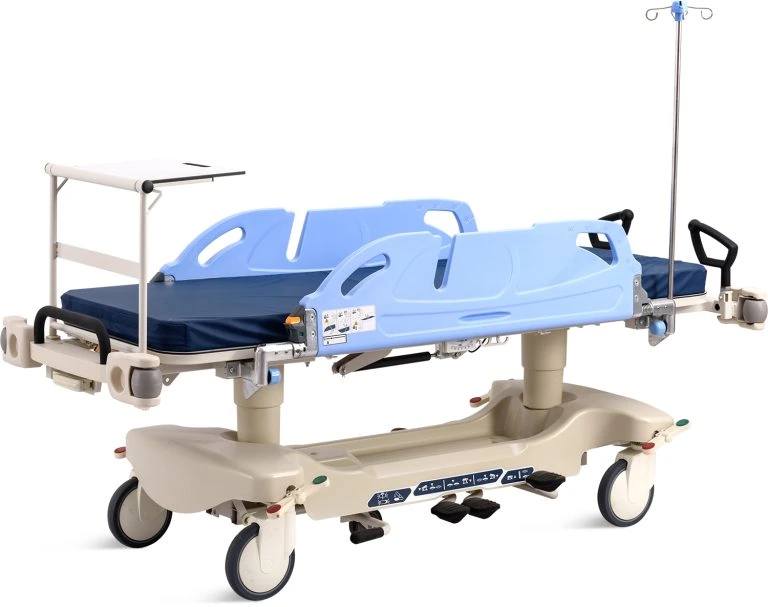

Patient Transportation Trolley 01

Specifications

• Extemal size(LxW): 2150 × 830 mm( ± 10 mm)
• Table height adjustment: 560-890 mm( ± 10 mm)
• Back plate adjustment: 0-75°( ± 5°)
• Knee-rest adjustment: 0-40°( ± 5°)
• Revrese trendelenburg: 0-18°( ± 2°)
• Trendelenburg: 0-18°( ± 2°)
• Static Load Capacity: 220 kg
• 8-inch Central Control Casters: 4 pcs
• Hydraulic Pumps: 2 pcs
• PP Guardrails with angle display: 2 pcs
• Stainless Steel Infusion Pole: 1 pc
• Infusion Stand Holes: 4 pcs
• Back Lifting Gas Springs: 2 pcs
• Leg Lifting Crank Handle: 1 pc
• Anti-collision Wheels: 4 pcs
• Foot Pedals: 2 sets
• Central Control Brakes: 4 pcs
• Fifth Castor: lpc
• Bottom Plastic Cover: 1 pc
• 7 cm PU Mattress: 1 pc
• Instrument Platform: 1 pc
