Patient Lifts

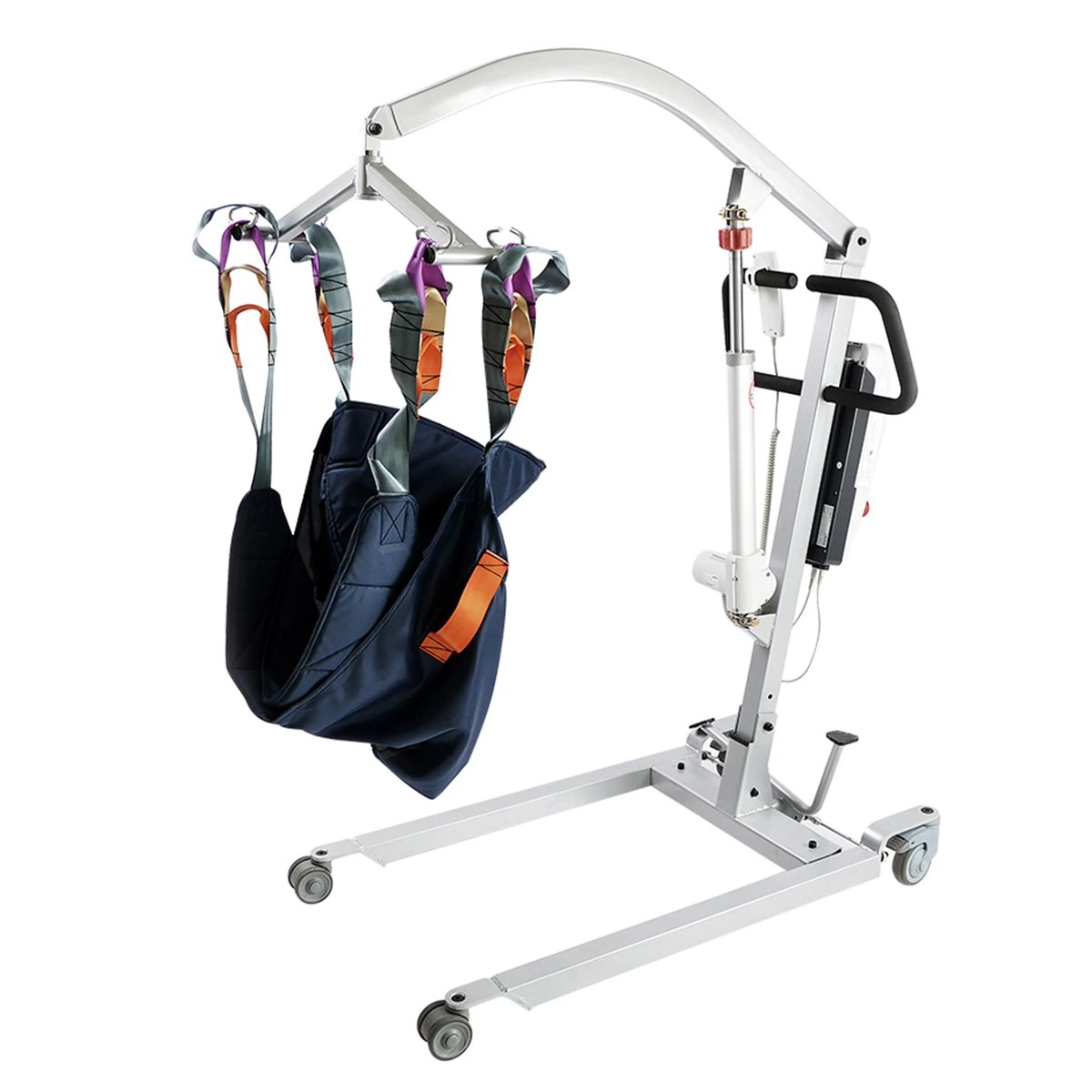

Patient Lift 01
Patient Lift 01 supports safe transfers with adjustable lifting height, durable steel construction, rechargeable battery operation, and a 150 kg capacity.
Public product ID: NUP-MED-000495
Specifications
- Frame: Steel, powder coating
- Chassis Length: 1070mm
- Chassis Width: 600mm-800mm
- Lifting Height: 830mm-1850mm
- Handle Height: 1000mm
- Caster Height: 90mm
- Motor: DC 24V 8000N
- Battery: DC 24V 5Ah, rechargeable battery Approx. 60 lifts per full charge
- Charger: 24V-1A
- Charging Time: 6 hours per time
- Front Caster: 3"solid tire, plastic wheel optional
- Rear Caster: 4"solid tire with locking, plastic wheel optional
- Max. User Weight: 150 kg (23.62 stone)
- Alternatives: Purpose designed sling
- Package: 1260*630*350mm
- G./N.W.: 51/43 kg
- Chassis Length(mm): Chassis Width(mm)
