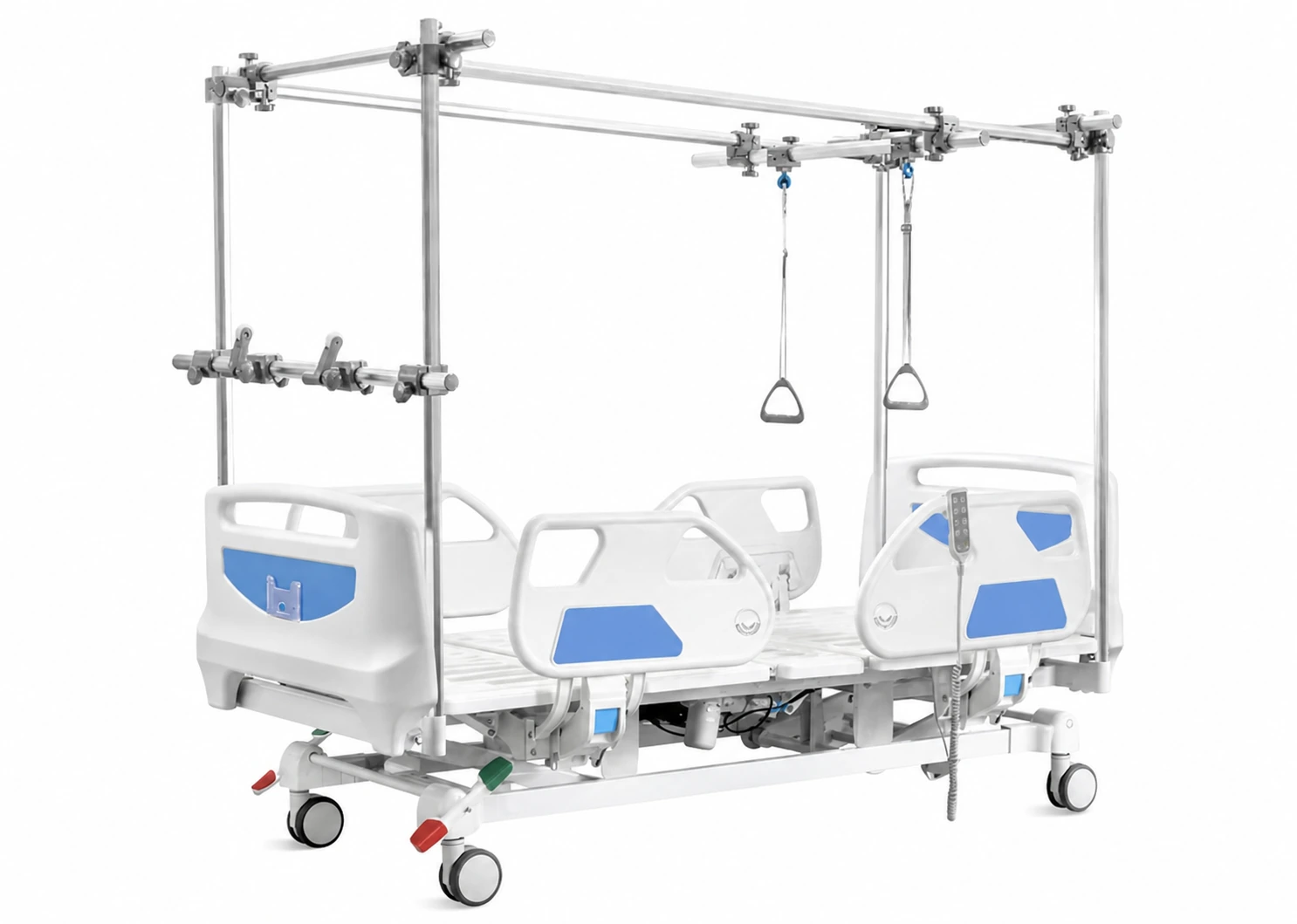

Orthopedic Traction Electric Bed

Specifications

• Size (LxW): 2250 × 1060 mm
• Height adjustment of use base: 435-725 mm
• Mattress platform: 1935 × 900 mm
• Safe working load: 250 kg
• Back-rest adjustment: 0-75°( ± 10°)
• Knee-rest adjustment: 0-35°( ± 10°)
• Reverse trendelenburg: 0-12°
• Trendelenburg: 0-12°
• Linear motor: 3 pcs.
• Hand controller: 1 set
• Angle indicator: 4 pcs.
• Double side castors (5") with central locking system: 4 pcs.
• Central locking pedal: 2 pcs.
• ABS side rails with extra height: 1 set
• ABS bed ends with safe lock: 1 set
• Aluminium balkan frame: 1 set
• IV pole: 1 set
• IV pole prevision: 4 pcs.
• Drainage hook: 2 pcs.
• Comparison Dimension: Hospital Manual Bed Key Advantages
• Power & Environment: Fully independent from electricity. The manual hospital bed can be used in rural hospitals, emergency situations, or areas with unstable power supply without any limitation.
• Reliability & Maintenance: High mechanical reliability with a simple crank system. The hospital manual bed has fewer failure points and requires minimal maintenance throughout its service life.
• Operation Safety: Designed to reduce patient misoperation risk. Adjustment is controlled by caregivers, making the manual hospital bed safer for elderly, unconscious, or post-operative patients.
• Mobility & Weight: Lightweight structure without motor or battery components, making the manual hospital bed easier to move within wards or home care environments.
• Adjustment Experience: Manual crank adjustment may require physical effort but provides stable and predictable positioning for patient care.
• Core Value Positioning: The hospital manual bed focuses on affordability, durability, safety, and independence from electricity, making it a practical solution for essential patient care.
