Hospital Beds

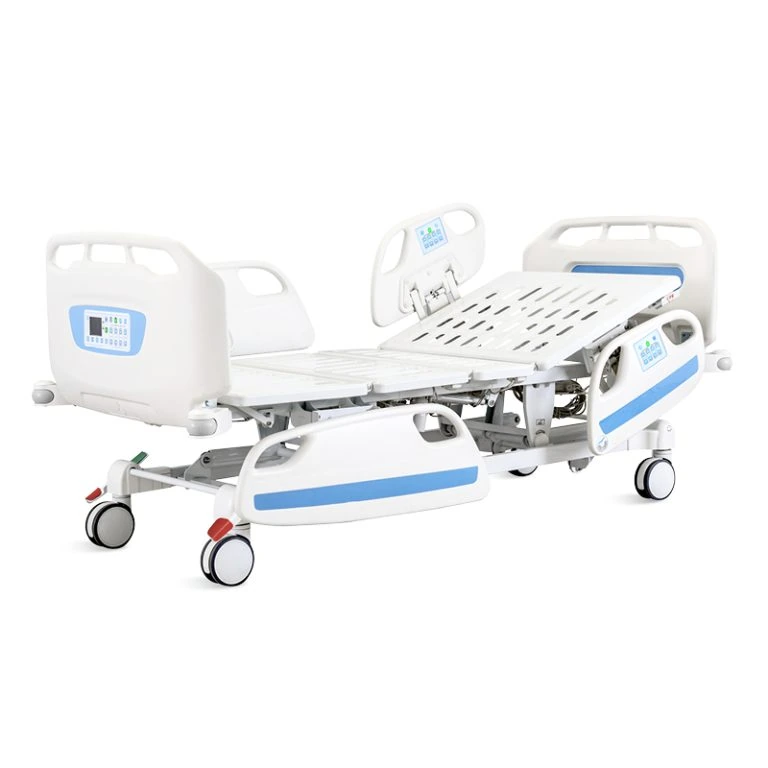

Multifunctional Electric ICU Bed
Multifunctional Electric ICU Bed. External size (LxW): 2280 × 1090 mm.
Public product ID: NUP-MED-000220
Specifications
- External size (LxW): 2280 × 1090 mm
- Mattress platform: 1925 × 900 ± 10 mm
- Safe working load: 250 kg
- Height adjustment: 435-725 ± 10 mm
- Back-rest adjustment: 0-75°( ± 10°)
- Knee-rest adjustment: 0-35°( ± 10°)
- Reverse Trendelenburg: 0-12°( ± 2°)
- Trendelenburg: 0-12°( ± 2°)
- Angle indicator: 0-90°
- Voltage and frequency: 100-240V·50/60Hz
- Configuration: Plug as required (hospital grade)
- Configuration: Manual CPR
- Configuration: One button stop
- Configuration: One button trendelenburg
- Configuration: Nurse lock system
- Angle indicator for back-rest and Trendelenburg position: 4 pcs.
- Linear motor: 4 pcs.
- 5" double side castors with central locking system: 4 pcs.
- PP side rail with integrated control panel: 1 set
- PP bed ends with integrated LCD control panel: 1 set
- φ85 mm Wall Bumper Wheel: 4 pcs.
- Trapeze Socket: 2 pcs.
- IV Pole: 1 set
- IV Pole Prevision: 4 pcs
- Drainage Hook: 2 pcs.
- Central Locking Pedal: 2 pcs.
