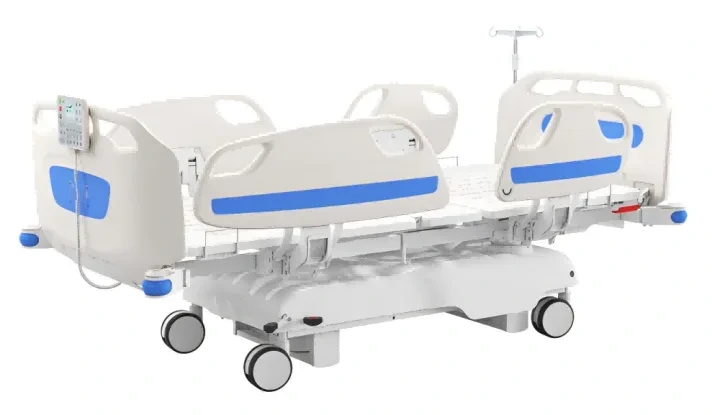

Multifunctional Electric Bed 01

Specifications

• Dimensions: 2290 × 1050 × 550–950 mm ± 10 mm
• Configuration: (bed board 1925 × 900 mm ± 10 mm)
• Backrest up: 75° ± 10°
• Thigh rest up: 35° ± 10°
• Forward tilt: 15° ± 2°
• Reverse tilt: 15° ± 2°
• Left/right lateral tilt: 17° ± 2°
• Overall height adjustment: 550–950 mm ± 10 mm
• Configuration: Backrest auto-regression (pressure relief) function
• Configuration: PP removable headboard and footboard, D17 style
• Configuration: Bed foot end with patient record card holder
• Configuration: PP 4-piece foldable/hidden D17 side rails (with angle indicators on rails)
• Configuration: Plastic-steel hydraulic bed surface
• Configuration: Low-carbon square steel tube bed frame
• Configuration: 2 x boom arm sockets at head end (32 mm diameter for boom arms)
• Configuration: 6-inch central lock double-sided castors (side brake)
• Configuration: Backrest with CPR quick-release function
• Configuration: Domestic electric motor
• Configuration: 30 × 50 mm plastic drainage bag hooks, 2 pcs
• Configuration: One hanging nurse control panel at foot end
• Configuration: Stainless steel IV Pole, with 4 plastic hooks(gray)
• Configuration: Bedside Table
• Configuration: Overbed Table
• Configuration: Backrest compact laminate board
• Configuration: X-ray cassette holder
• Configuration: Battery backup
• Configuration: Oxygen cylinder holder
• Configuration: Side rail control panel
• Configuration: Wired handset
• Configuration: Weighing system
• Configuration: Safe working load 250 kg
