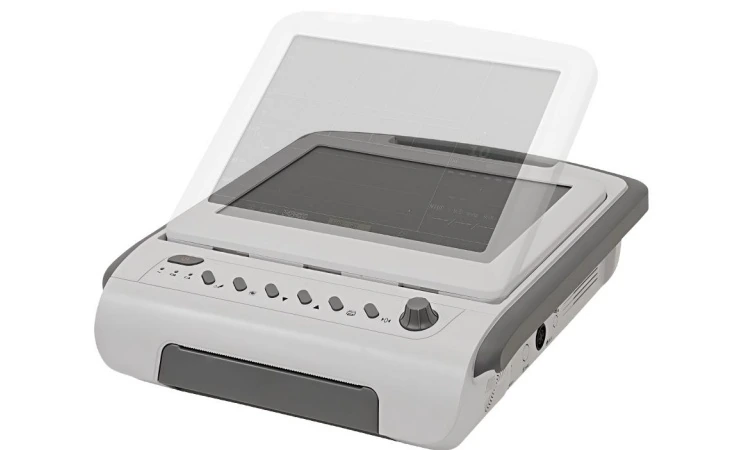

Maternal And Child Health Monitoring Device
Maternal And Child Health Monitoring Device. Configuration: 12.1-inch non-touch screen , folding 90 degree, 800 × 600 high resolution;.
Public product ID: NUP-MED-000367
Specifications
- Configuration: 12.1-inch non-touch screen , folding 90 degree, 800 × 600 high resolution;
- Standerd parameters: SpO2, HR, NIBP, TEMP, ECG, RESP, FHR, TOCO, FM;
- Configuration: Standard electrocardiogram with 5-lead cable;
- Configuration: 4400mAh built-in battery;
- Configuration: 152 mm imported hot array printer;
- Configuration: A set of adult accessories;
- Configuration: ECG
- Lead configuration: Standard three-lead or five-lead cable
- Gain: '0.25, 0.5, '1, '2
- Heart rate range: Adults: 15bpm to 300bpm Newborns/children: 15bpm to 350bpm
- Electrode polarization voltage rang: 士300mV
- Baseline recovery time: ＜3 seconds after defibrillation
- Configuration: Respiration
- Measurement method: RA-LL(R-F)impedance method
- Respiration rate range: Adults: (0-120) BrPM Children and newborns: (0-150) BrPM
- Apnea alarm: (10-40)seconds
- Configuration: Measurement range of blood oxygen saturation
- Configuration: 0-100%
- Resolution: 1%
- Accuracy: 70%-100%:+2
- Configuration: Measurement range of pulse rate
- 20bpm-300bpm resolution: l bpm accuracy: ± 3bpm
- Configuration: Temperature measurement range
- (5-50)℃, resolution: 0.1°c
- Configuration: Non-invasive blood pressure
- Operating modes: manual/automatic/continuous
- Measurement interval time in automatic measurement mode: 1-480 minutes
- Measuring range systolic pressure: (60-240)mmHg
- Diastolic pressure: (30-180)mmHg
- Mean pressure: (40-200)mmHg
- Static pressure range: (0-300)mmHg, static pressure accuracy: ± 3 mmHg
