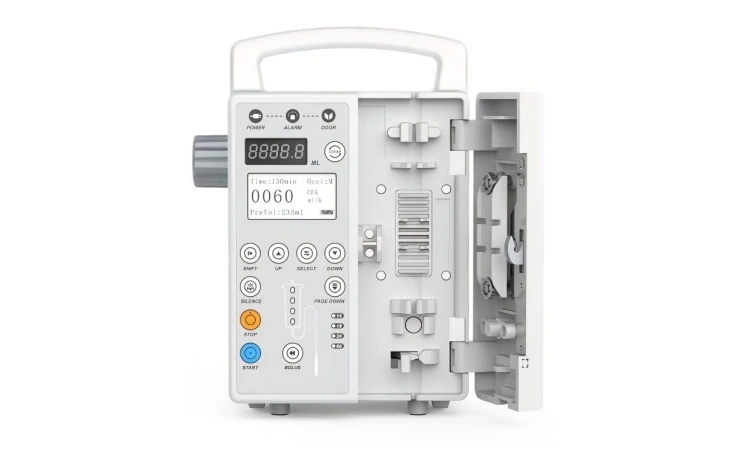

Infusion Pump 01

Specifications

• Product Size: 153 mm(L)x 162 mm((W)x 227 mm (H) Allowable error + 5%
• Product Weight: 17 kg
• Mode Selection: drip rate mode.volume mode, time mode
• Infusion Set Specification: special or standard disposable infusion set
• special orstandard disposable infusion set: special or standard disposable infusion set
• Infusion Rate Range: ml/h Mode: (1 to 1200) ml/h, 1 ml/h increment per step Drop/min Mode: (1 to 266) drops/min
• Infusion Rate Accuracy: ml/h mode: within ± 5% (after calibration)
• Drop/min Mode: within ± 3% (after calibration)
• Mechanical Accuracy of Infusion Pumps: within ± 2%
• Rapid Infusion Rate: 100 ml/h~1000 ml/h (100 ml/h per step increment)
• KVO Speed: 1 ml/h~5 ml/h (each increment is 1 ml/h)
• Infusion volume: 0 ml~9999 ml
• Cumulative Infusion Volume: 0 ml~9999.9 ml
• Blocking alarm threshold: Height:800mmHg+200mmHg(106.7kPa+26.7kPa) Medium:500mmHg+100mmHg(66.7kPa+13.3kPa) Low:300mmHg+100mmHg(40.0kPa+13.3kPa)
• Alarm: Infusion completed, pipeline blocked, door opened, air bubbles, batterylow, etc.
• Power supply: 220VAC, 50Hz; built-in battery: 11.1v rechargeable lithium battery pack, capacity >1600mAh, afterthe new batteryis fullycharged, the infusion pump can work continuously for more than 4 hours at a rate of25 ml/h.
• Bubble Detector: ultrasonic detection mode, detection sensitivity>25uL
• Fuse: specification T2AL/250vAc, quantity 2, installed ininfusion pumps
• IP Rating: IPX2splash-proof equipment
• SafetyClass: Classl, internal powersupply, CFtype continuous operation equipment
• Operatingenvironment conditions:a)Ambient temperature range: +5°C~+40°C
• b) Relative Humidity: 20~90%
• c)Atmospheric Pressure Range: 86.0KPa~106.0 KPa
• Transportationand storage conditions:a)Ambienttemperature range: －20°C~+55°C
• b) Relative humidity: ≤93%
