Operating & Obstetric Tables

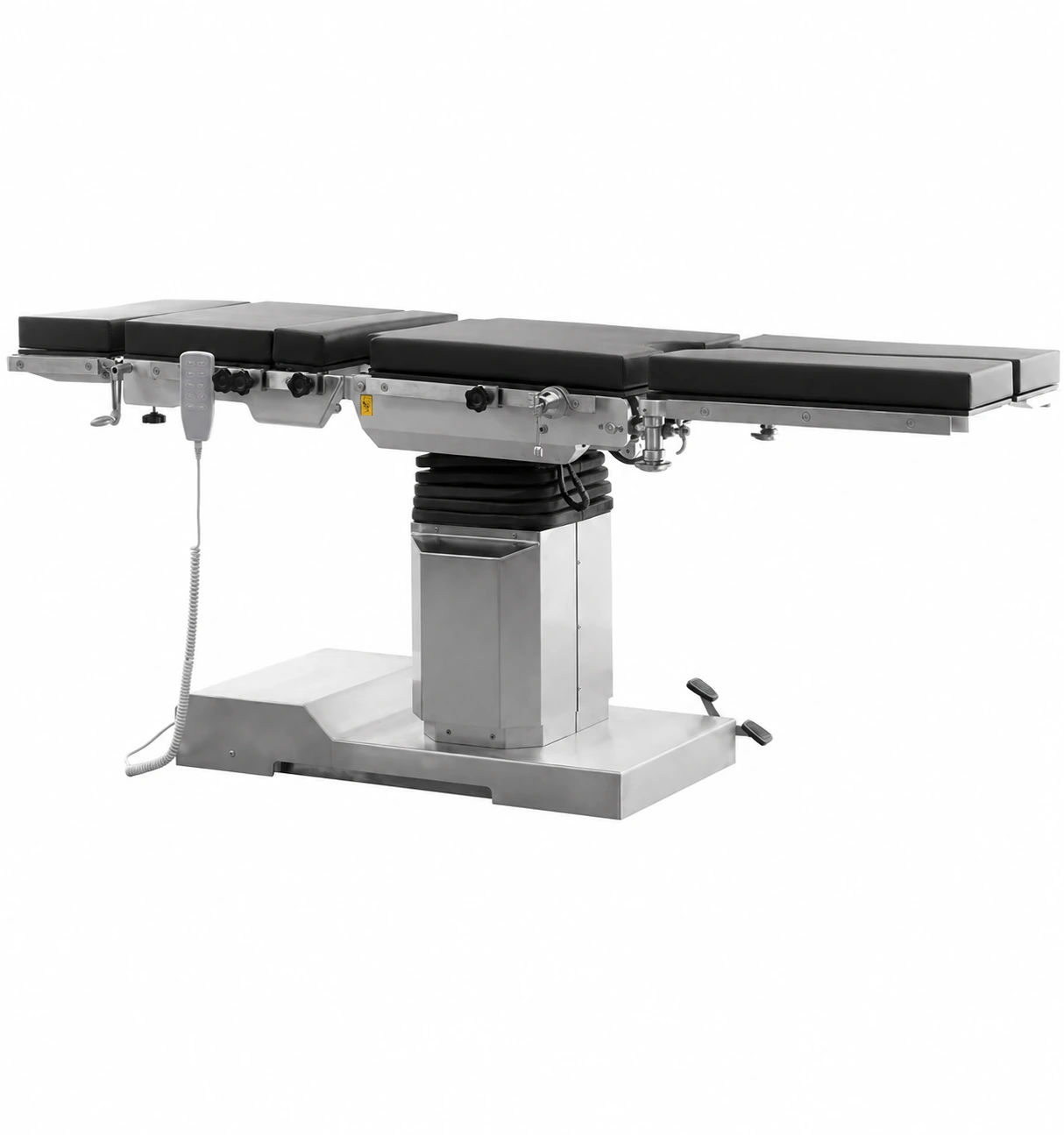

Electro Hydraulic Operation Table
Electro Hydraulic Operation Table. Length/Width: 2020 × 500 mm ± 10 mm.
Public product ID: NUP-MED-000214
Specifications
- Length/Width: 2020 × 500 mm ± 10 mm
- Height Elevating/Lowering: 750-1050 mm ± 10 mm
- Forward Tilt/Backward Tilt: 22 ± 3°/25 ± 3°
- Left Tilt/Right Tilt: 20° ± 3° / 20° ± 3°
- Backrest (Up/Down): 70° ± 3° / 40° ± 3°
- Head Section (Up/Down): 42° ± 3° / 90° ± 3°
- Leg Section Downward: 90° ± 3°
- Leg Section Outward: 90° ± 3°
- Kidney Bridge: 80 mm ± 10 mm
- Horizontal Sliding: 300 mm ± 10 mm
- Anesthesia Screen: 1 unit
- Shoulder Supports: 1 pair
- Arm Rests: 1 pair
- Lumbar Supports: 1 pair
- Leg Supports: 1 pair
