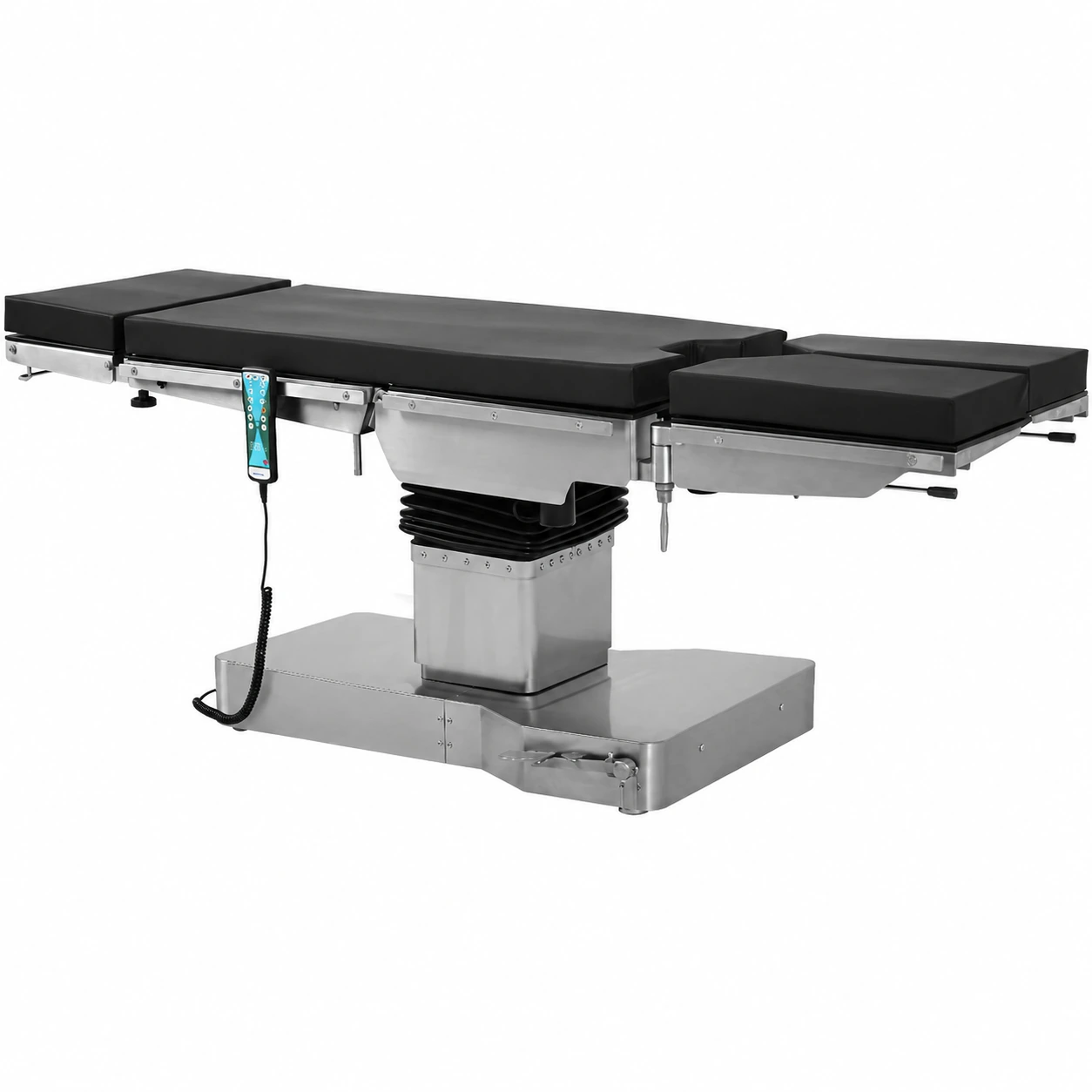

Electric Operating Table 06
Electric Operating Table 06. Length/Width: 2080 × 550 mm ± 10 mm.
Public product ID: NUP-MED-000283
Specifications
- Length/Width: 2080 × 550 mm ± 10 mm
- Height Elevating/Lowering: 700-1000 mm ± 10 mm
- Forward Tilt/Backward Tilt: 24° ± 3° / 24° ± 3°
- Left Tilt/Right Tilt: 23° ± 3° / 23° ± 3°
- Backrest (Up/Down): 80° ± 3° / 20° ± 3°
- Head Section (Up/Down): 50° ± 3° / 90° ± 3°
- Leg Section (Up/Down): 20° ± 3° / 90° ± 3°
- Leg Section Outward: 90° ± 3°
- Kidney Bridge: 140 mm ± 5 mm
- Horizontal sliding: 300 mm ± 5 mm
- Anesthesia Screen: 1 unit
- Shoulder Supports: 1 pair
- Arm Rests (with straps): 1 pair
- Lumbar Supports: 1 pair
- Leg Supports (with straps): 1 pair
- Foot Plates: 1 pair
