Operating & Obstetric Tables

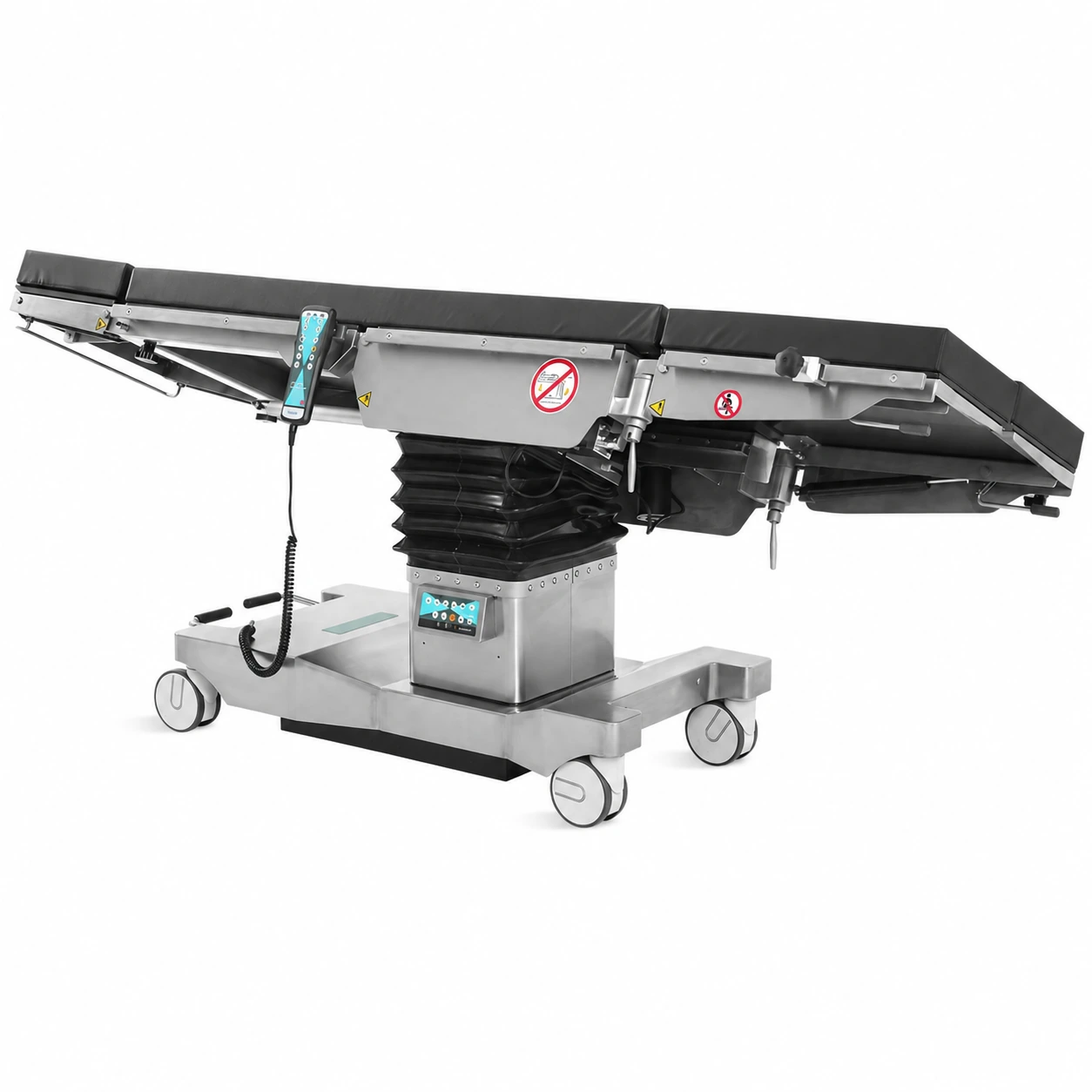

Electric Operating Table 04
Electric Operating Table 04. Length/Width: 2000 × 555 mm ± 10 mm.
Public product ID: NUP-MED-000265
Specifications
- Length/Width: 2000 × 555 mm ± 10 mm
- Height Elevating/Lowering: 730-980 mm ± 10 mm
- Forward Tilt/Backward Tilt: 24° ± 3° / 24° ± 3°
- Left Tilt/Right Tilt: 23° ± 3° / 23° ± 3°
- Backrest (Up/Down): 66° ± 3° / 22° ± 3°
- Head Section (Up/Down): 30° ± 3° / 90° ± 3°
- Leg Section (Up/Down): 90° ± 3° / 90° ± 3°
- Leg Section Outward: 90° ± 3°
- Kidney Bridge: 110 mm ± 5 mm
- Horizontal Sliding: 350 mm ± 5 mm
- Anesthesia Screen: 1 unit
- Shoulder Supports: 1 pair
- Arm Rests: 1 pair
- Lumbar Supports: 1 pair
- Leg Supports: 1 pair
- Foot Plates: 1 pair
