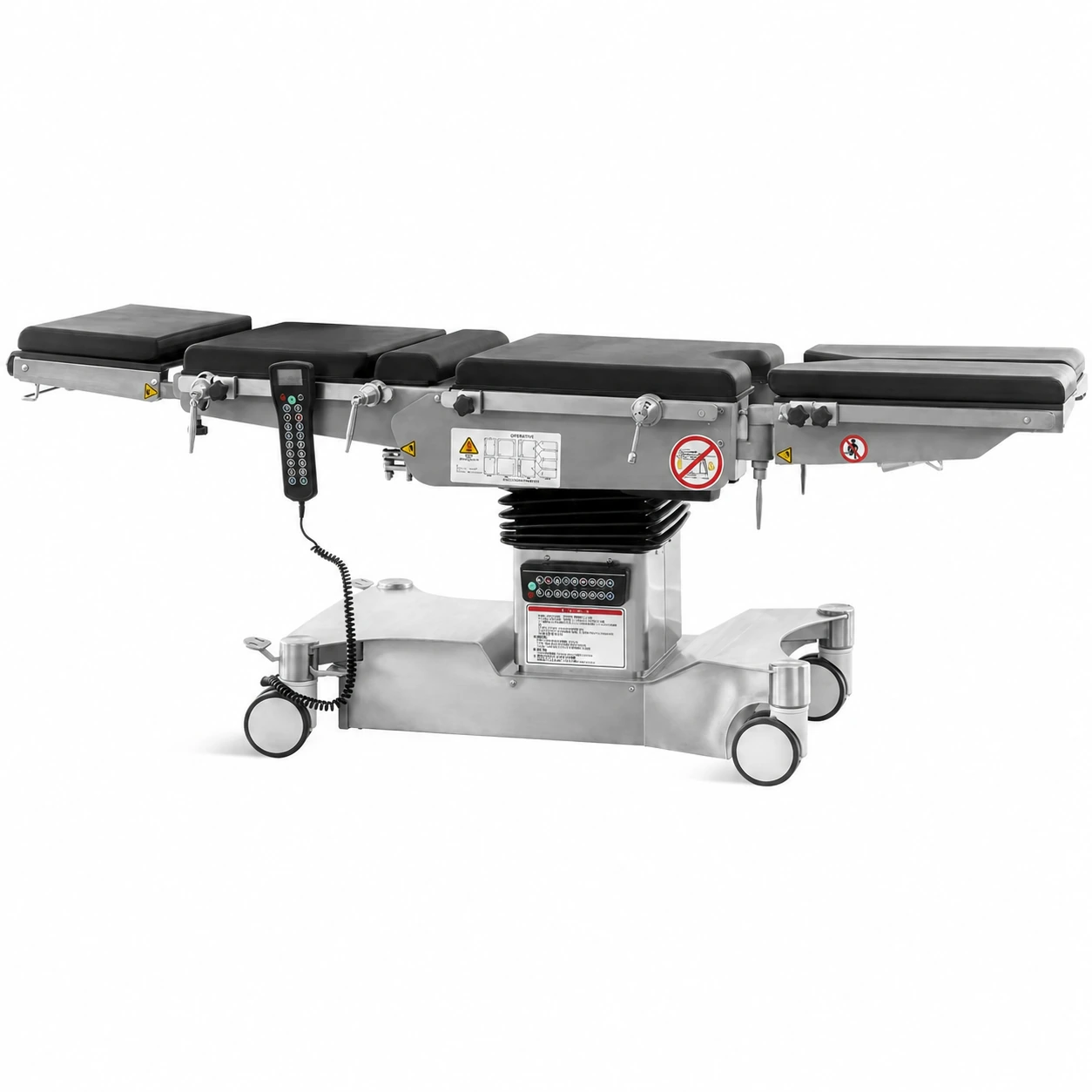

Electric Operating Table 03

Specifications

• Length/Width: 2000 × 555 mm ± 10 mm
• Height Elevating/Lowering: 690-990 mm ± 10 mm
• Forward Tilt/Backward Tilt: 24° ± 3° / 24° ± 3°
• Left Tilt/Right Tilt: 23° ± 3° / 23° ± 3°
• Backrest (Up/Down): 68° ± 3° / 22° ± 3°
• Head Section (Up/Down): 33° ± 3° / 90° ± 3°
• Leg Section (Up/Down): 18° ± 3° / 85° ± 3°
• Leg Section Outward: 90° ± 3°
• Kidney Bridge: 110 mm ± 5 mm
• Horizontal Sliding: 350 mm ± 5 mm
• One-Button Flexion/Reverse Flexion: 220° ± 3° / 100° ± 3°
• Anesthesia Screen: 1 unit
• Shoulder Supports: 1 pair
• Arm Rests: 1 pair
• Lumbar Supports: 1 pair
• Leg Supports: 1 pair
• Foot Plates: 1 pair
