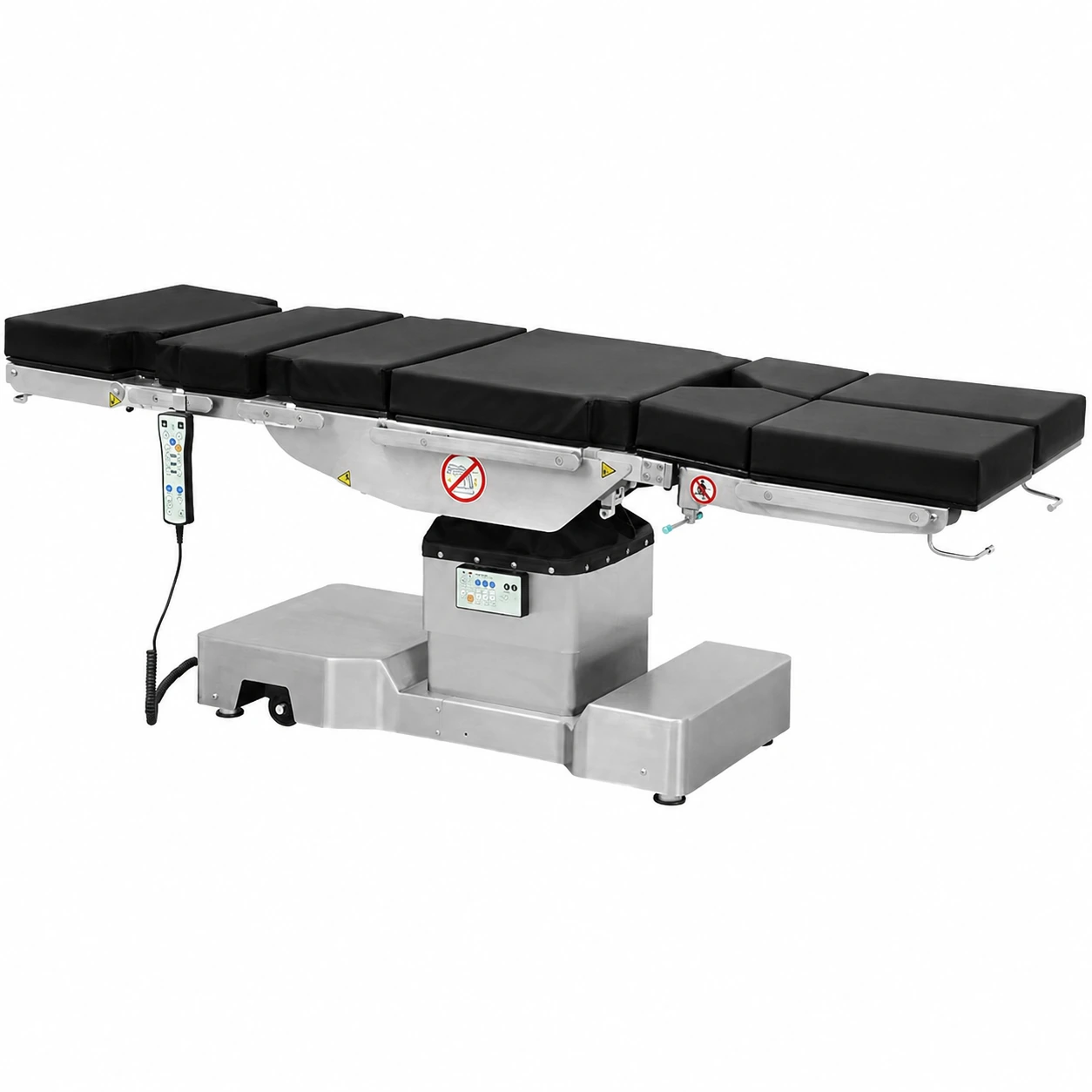

Electric Hydraulic Operating Table 01

Specifications

• Length/Width: 2140 × 550 mm ± 10 mm
• Height Elevating/Lowering: 550-1050 mm ± 10 mm
• Forward/Backward Tilt: 30° ± 3°
• Left/Right Tilt: 20° ± 3°
• Backrest (Up/Down): 80° ± 3° / 50° ± 3°
• Head Section (Up/Down): 60° ± 3° / 90° ± 3°
• Leg Section (Up/Down): 15° ± 3° / 90° ± 3°
• Leg Section Outward: 90° ± 3°
• Horizontal Sliding: 300 mm ± 5 mm
• One-Button Flexion/Reverse Flexion: 220° ± 3°, 100° ± 3°
• Configuration: Electric Brake
• Configuration: Dual Head Section
• Configuration: Dual Articulated Leg Section
• Configuration: Head/Leg Section Interchangeable with Automatic Recognition
• Anesthesia Screen: 1 unit
• Shoulder Supports: 1 pair
• Arm Rests: 1 pair
• Lumbar Supports: 1 pair
• Leg Supports: 1 pair
