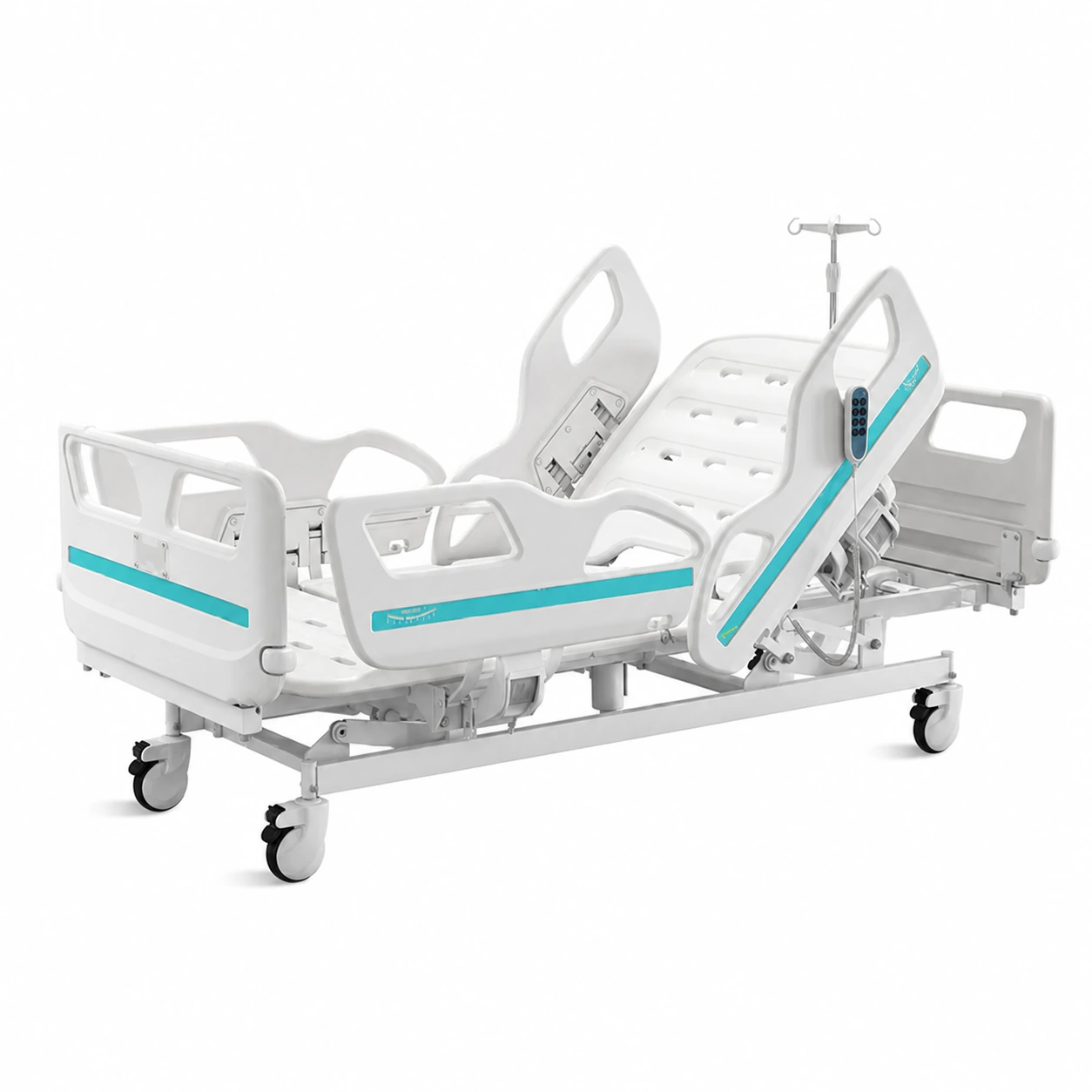

Electric Bed 03

Specifications

• External size (LxW): 2085 × 1025 mm
• Mattress platform: 1925 × 900 mm
• Safe working load: 250 kg
• Height adjustment: 430-740 ± 10 mm
• Back-rest adjustment: 0-75°( ± 10°)
• Knee-rest adjustment: 0-46°( ± 10°)
• Angle indicator: 0-90°
• Position line: 30°
• Voltage and frequency: 100-240V ·50/60Hz
• Configuration: Plug as required (hospital grade)
• Linear motor: 3 pcs
• Hand controller: 1 pc
• 5" covered casters: 4 pcs
• PP side rail extra height: 1 set
• PP bed ends with safe lock with Φ65 bumper wheels: 1 set
• PP bed platform with integrated mattress retainer: 1 set
• IV pole 4 hooks: 1 set
• IV pole prevision: 4 pcs
• Drainage hook: 2 pcs
