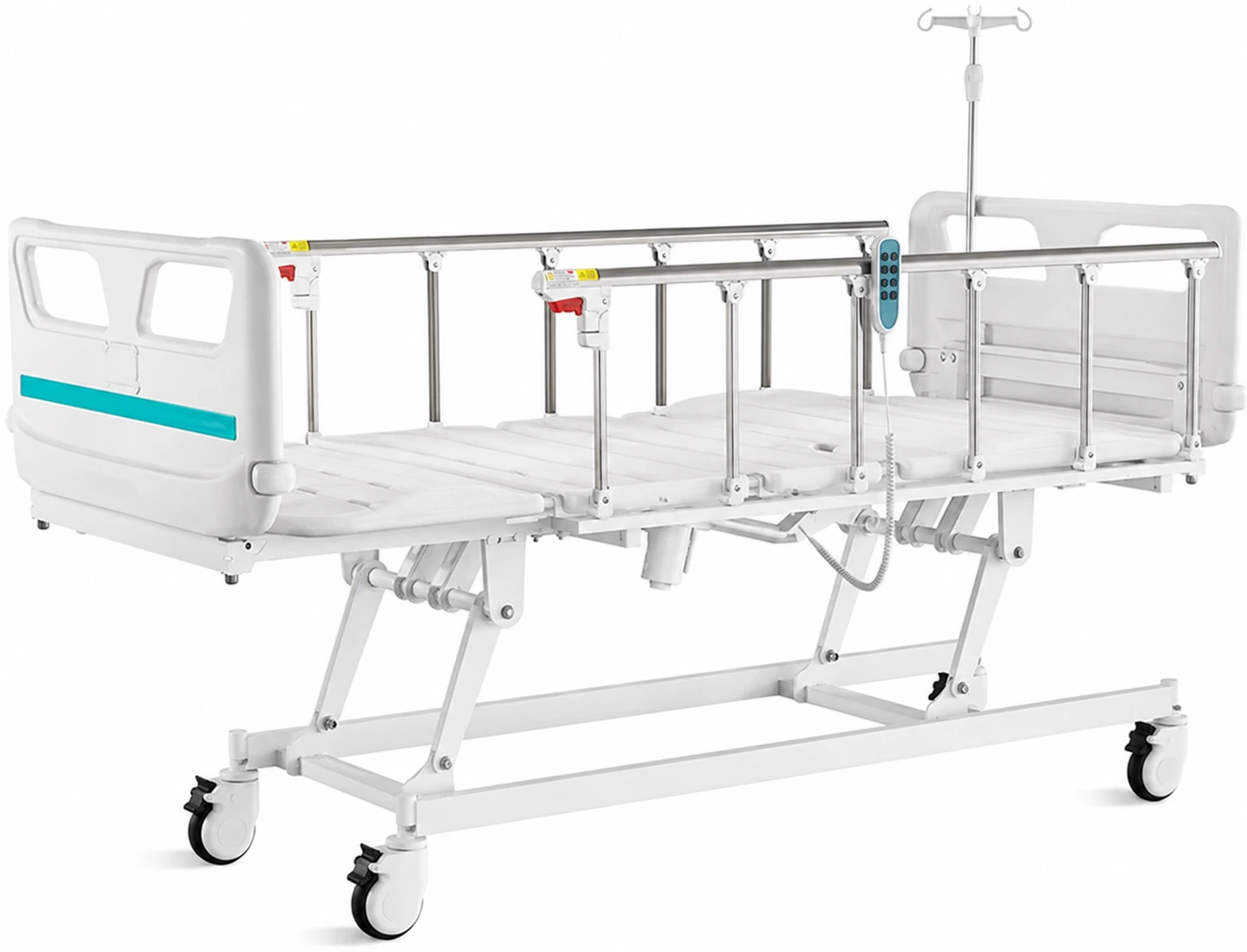

Electric Bed 02

Specifications

• External size (LxW): 2085 × 995 mm
• Mattress platform: 1925 × 900 mm
• Safe working load: 200 kg
• Height adjustment: 420-730 mm
• Back-rest adjustment: 0-75°( ± 5°)
• Knee-rest adjustment: 0-46°( ± 5°)
• Linear motor: 3 pcs
• Hand controller: 1 pc
• 5" covered castors: 4 pcs
• Foldable side rail: 1 set
• PP bed ends with safe lock with Ф65 bumper wheels: 1 set
• PP bed platform with integrated mattress retainer: 1 set
• IV pole 4 hooks: 1 set
• IV pole prevision: 4 pcs
• Drainage hook: 2 pcs
• Configuration: Battery Back-up
• Configuration: Bed Extension
• Configuration: Nurse Controller
• Configuration: Emergency Stop Button
• Configuration: Auto-regression Function (Back Section)
• Configuration: Night Light
• Configuration: Manual CPR
• Configuration: X-ray Translucent Mattress Platform (Back Section)
• Configuration: Utility Shelf
• Configuration: Trapeze Bracket/Pole
