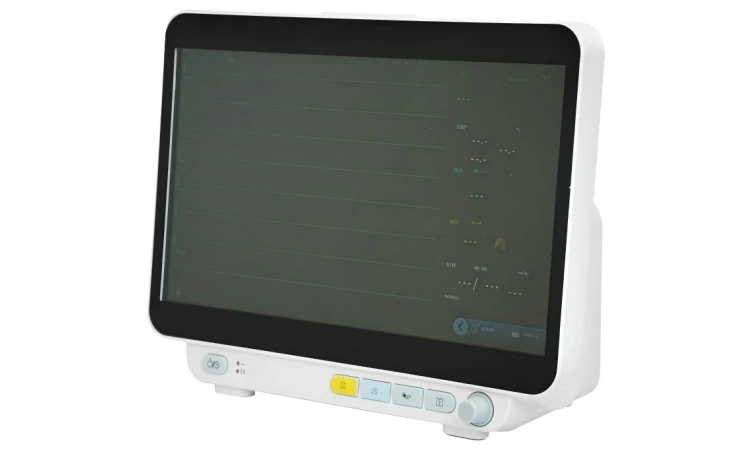

14 Inch Patient Monitor

Specifications

• Configuration: 14-inch non-touchscreen, 800 × 600 high resolution;
• Standerd parameters: SpO₂, ECG, PR, BP, Resp, Temp;
• Configuration: 2000mAh built-in battery;
• Configuration: Available in 8 languages, including Chinese and English
• Configuration: A set of adult accessories;
• Product weight: NW: 2.6 kg
• Product size: 336 × 262 × 99 mm
• ECG（Lead configuration）: 6-pin, 5-lead ECG lead wires
• ECG（Gain）: ´0.25，´0.5，´1，´2，´4
• ECG（Heart rate range Adults）: 1.0 bpm to 300 bpm
• ECG（Newborns/children）: 15 bpm to 350 bpm
• ECG（Electrode polarization voltage range）: ± 300mV
• ECG（Baseline recovery time）: < 3 seconds after defibrillation
• Respiration（Measurement method）: RA-LL (R-F) Impedance Method
• Respiration（Respiration rate range: Adults）: (0 -120) BrPM
• Respiration（Children and newborns）: (0-150) BrPM
• Respiration（Apnea alarm）: (10-40) seconds
• Measurement range of blood oxygen saturation: 0～100%, resolution: 1%, accuracy: 70%～100%: ± 2, 0% ～69%
• Measurement range of pulse rate: 30 bpm to 300 bpm, with a resolution of 1 bpm and an accuracy of ± 3 bpm
• Non-invasive blood pressure（Operating modes）: manual/automatic/continuous
• Non-invasive blood pressure（Pulse Rate Range）: (30 - 300) bpm
• Non-invasive blood pressure（Measurement range）: Systolic pressure (40-280) mmHg, diastolic pressure (10-220) mmHg, mean arterial pressure (20-235) mmHg
• Non-invasive blood pressure（Static pressure range）: (0-300) mmHg, static pressure accuracy: ± 3 mmHg
• Body temperature ，measurement Range: (0-50)°C, resolution: 0.1°C, accuracy
