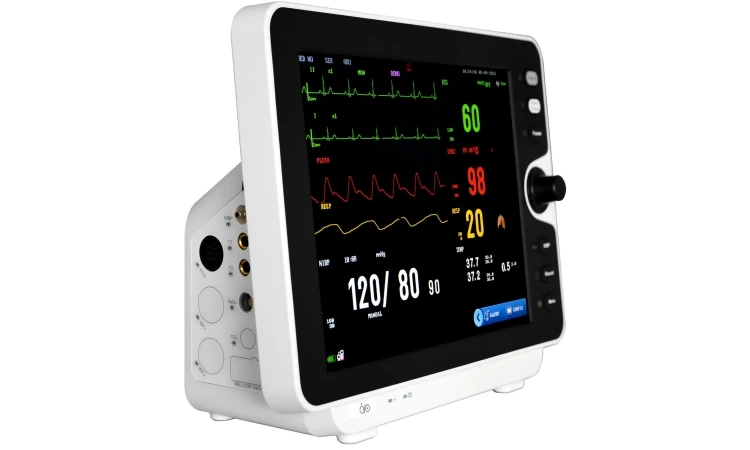

12 Inch Patient Monitor 03
12 Inch Patient Monitor 03. Configuration: 12.1-inch non-touchscreen, 800 × 600 high resolution;.
Public product ID: NUP-MED-000376
Specifications
- Configuration: 12.1-inch non-touchscreen, 800 × 600 high resolution;
- Standerd parameters: SpO₂, ECG, PR, BP, Resp, Temp;
- Configuration: Standard electrocardiogram with 5-lead cable ;
- Configuration: 2000mAh built-in battery;
- Configuration: Available in 8 languages, including Chinese and English
- Configuration: A set of adult accessories;
- Product weight: NW: 2.72 kg
- Product size: 262 × 336 × 84 mm
- Package size: 380 × 350 × 300 mm
- Operating temperature: 0-40 ℃
- Working humidity: ≤ 85
- ECG（Lead configuration）: 6-pin, 5-lead ECG lead wires
- ECG（Gain settings）: ´0.25，´0.5，´1，´2，´4，automatic
- ECG（Heart rate range Adults）: 1.0 bpm to 300 bpm
- ECG（Newborns/children）: 15 bpm to 350 bpm
- ECG（Electrode polarization voltage range）: ± 300mV
- Respiration（Measurement method）: RA-LL (R-F) Impedance Method
- Respiration（Respiration rate range: Adults）: (0 to 120) BrPM
- Respiration（Children and newborns）: (7-120) BrPM
- Respiration（Apnea alarm）: (10-40) seconds
- Measurement range of blood oxygen saturation: 0～100%, resolution: 1%, accuracy: 70%～100%: ± 2, 0% to 69%: undefined
- Measurement range of pulse rate: 30 bpm to 300 bpm, with a resolution of 1 bpm and an accuracy of ± 3 bpm
- Non-invasive blood pressure（Operating modes）: manual/automatic/continuous
- Measurement interval for automatic mode: 1-480 minutes
- Non-invasive blood pressure（Pulse Rate Range）: (30 - 300) bpm
- Non-invasive blood pressure（Measurement range） mmHg: Systolic Pressure: (40 to 270) mmHg；Diastolic Pressure: (10 to 215) mmHg；Mean Pressure: (20 to 235)
- Non-invasive blood pressure（Static pressure range）: (0-300) mmHg
- Non-invasive blood pressure（SStatic Pressure Accuracy）: ± 3 mmHg
- Body Temperature Measurement Range: (0 to 50)°C, Accuracy 0.1°C
- Power supply voltage: AC 100~240 V
- Power frequency: 50/60Hz
- Maximum input power: 70VA
- The fuse: F2AL 250V
- Working mode: continuous working
- Built-in lithium battery: DC 11.1V is not less than 2000mA, working time is not less than 2 hours.
