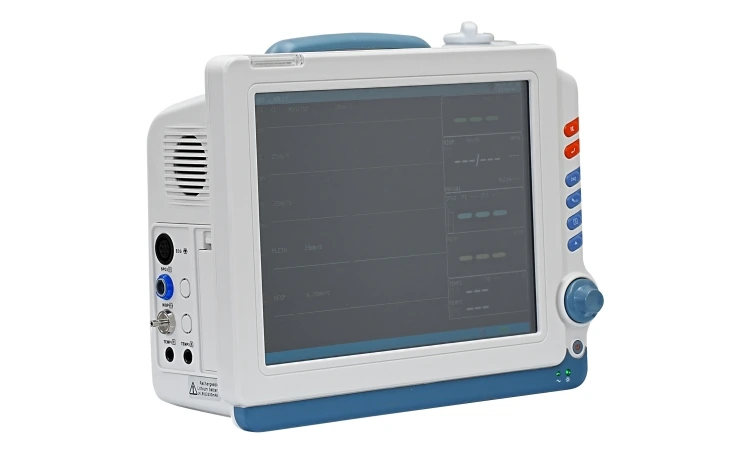

12 Inch Patient Monitor 02

Specifications

• Product weight: GW: 6 kg, NW: 3.5 kg
• ECG（Lead configuration）: Standard three-lead or five-lead cable
• ECG（Gain）: ´0.25, ´0.5, ´1, ´2
• ECG（Heart rate range Adults）: 15bpm to 300bpm
• ECG（Newborns/children）: 15bpm to 350bpm
• ECG（Electrode polarization voltage range）: ± 300mV
• ECG（Baseline recovery time）: <3 seconds after defibrillation
• Respiration（Measurement method）: RA-LL (R-F) impedance method
• Respiration（Respiration rate range: Adults）: (0-120) BrPM
• Respiration（Children and newborns）: (0-150) BrPM
• Respiration（Apnea alarm）: (10-40) seconds
• Measurement range of blood oxygen saturation: 0～100%, resolution: 1%, accuracy: 70%～100%: ± 2, 0%～69%: undefined
• Measurement range of pulse rate: 20bpm～300bpm resolution: 1bpm accuracy: ± 3bpm
• Non-invasive blood pressure（Operating modes）: manual/automatic/continuous
• Non-invasive blood pressure（Measurement range）: Systolic pressure (40-270) mmHg, diastolic pressure (10-215) mmHg, mean arterial pressure (20-235) mmHg.
• Non-invasive blood pressure（Static pressure range）: (0-300) mmHg, static pressure accuracy: ± 3 mmHg.
• Dual-channel temperature measurement, measurement range: (5-50)°C, resolution: 0.1°C, accuracy
